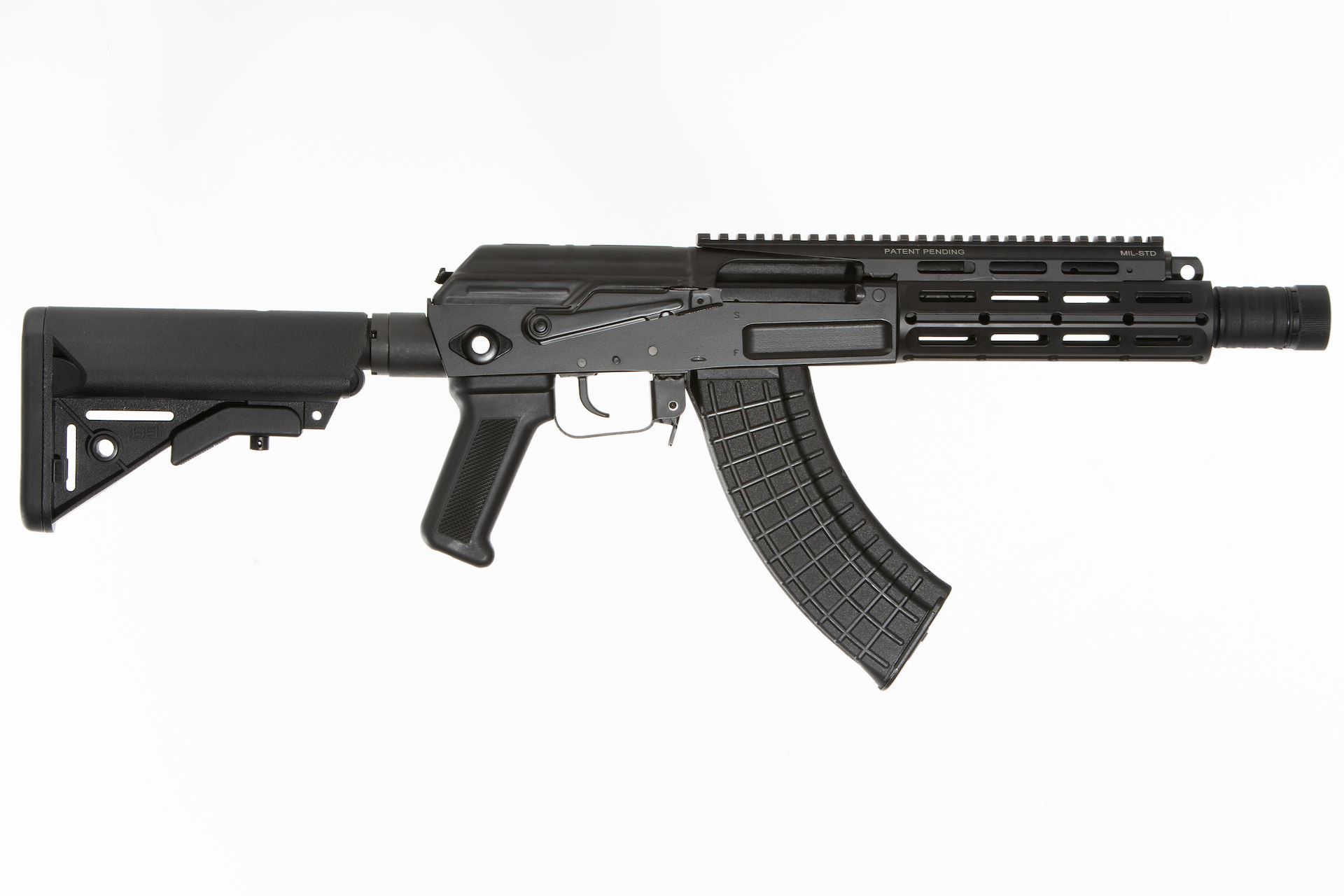

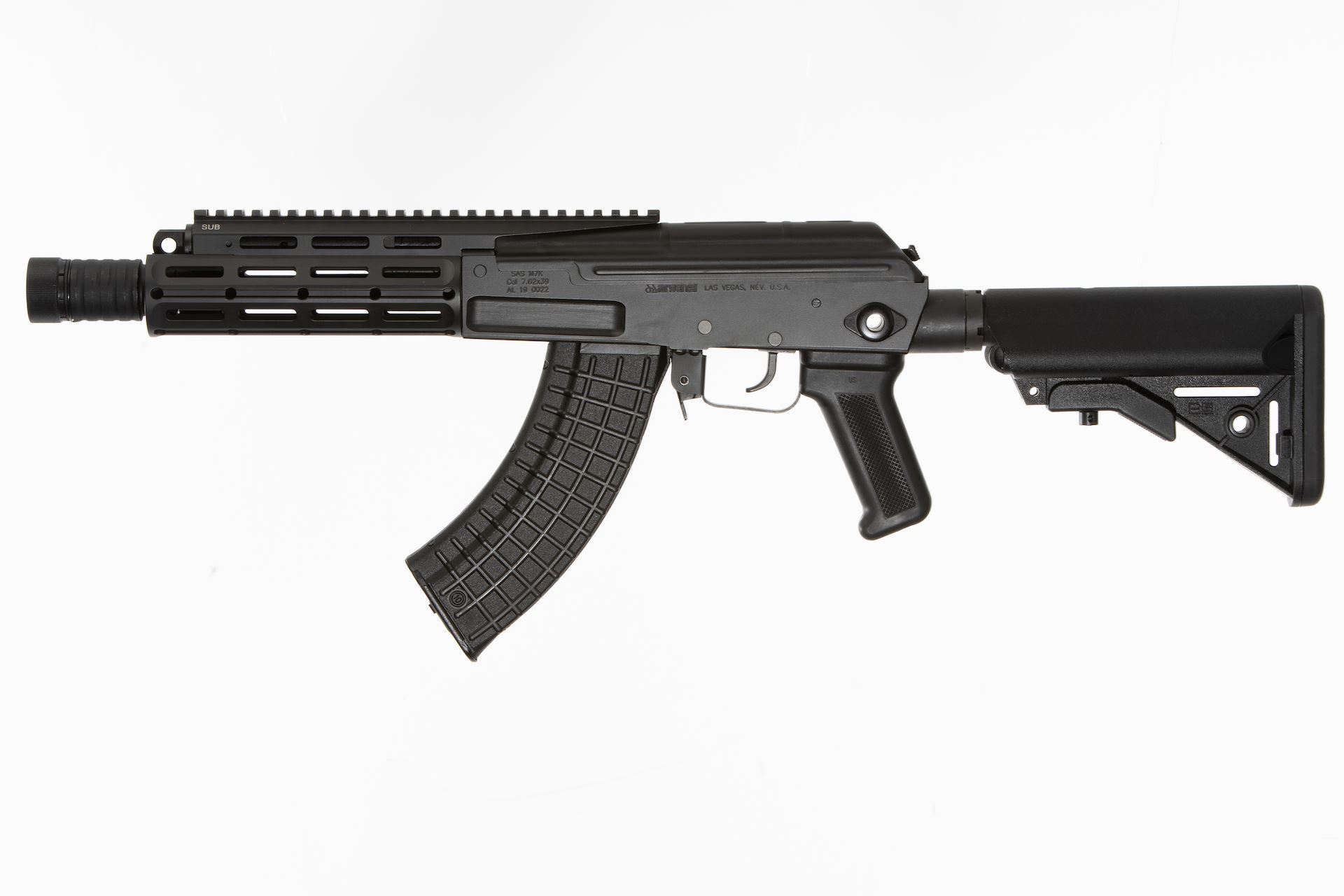

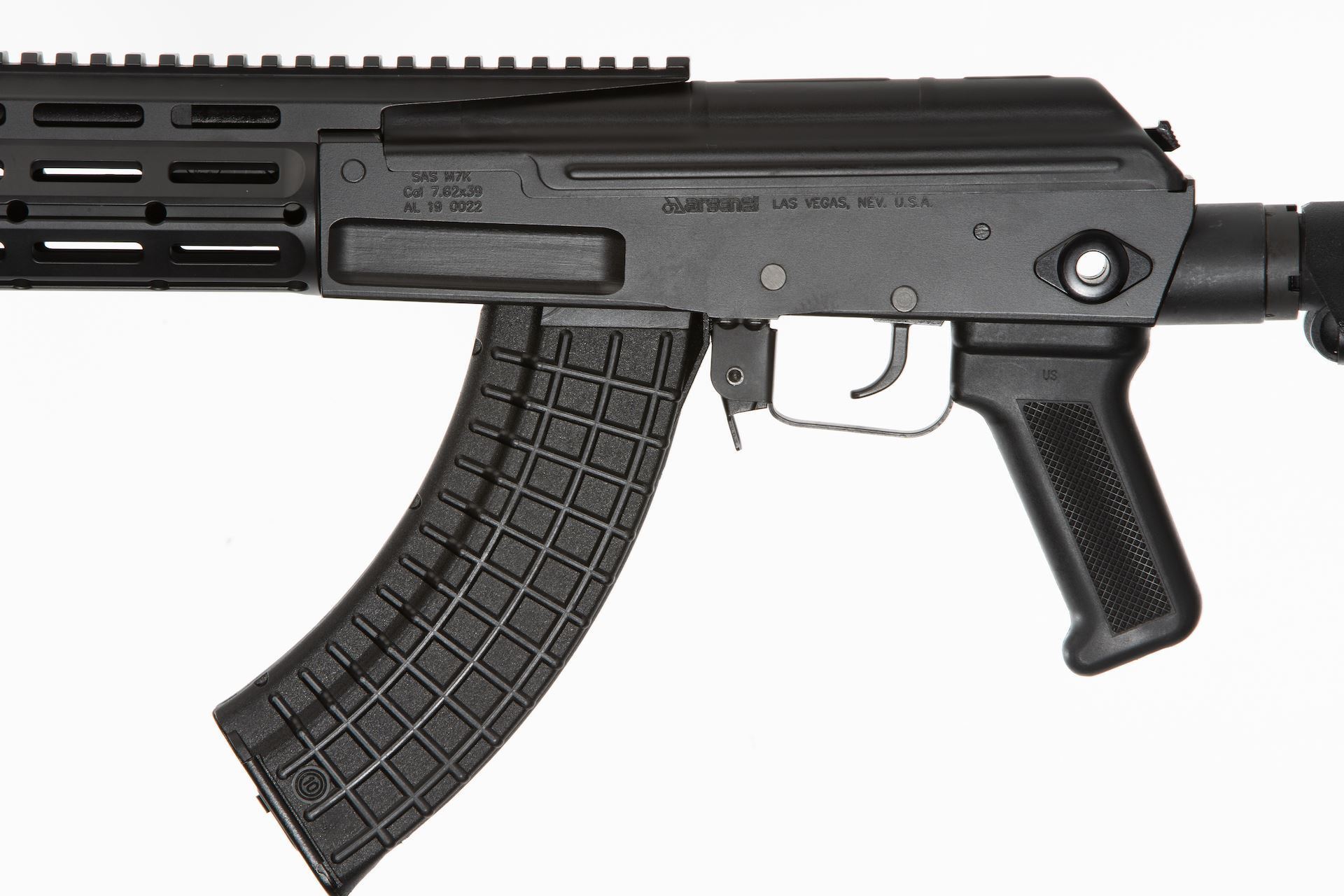

Arsenal AK-20 SASM7K SBR 7.62x39mm 8.5″ Barrel with Gas Adjuster Picatinny Top Rail Aluminum Hand Guard AR-15 Type Telescoping Stock and 30rd magazine.
The REVOLUTION of the AK
The wait is finally over.
Based on the long-revered AK platform Arsenal has re-imagined this classic firearm with innovative features and an updated look-&-feel that truly brings it into the 21st century. We’ve kept the best and improved the rest by creating a system that combines all of the operational reliability that you know and trust with the modern elements that serious shooters demand.
This limited edition custom shop model is hand crafted to exacting standards and is constructed with a milled receiver all machined parts hammer forged chrome lined barrel and aircraft-grade aluminum handguard. Chambered in 7.62x39mm it is available in SBR with pistol and rifle configurations coming soon.
THE ULTIMATE IN FLEXIBILITY
The AK-20 is designed with a proprietary integrated adjustable gas system that allows you to easily toggle between ammunition types and firing options depending on shooting conditions. You can choose between standard or sub-sonic ammunition and depending on the model switch to manual action for quieter shooting or suppressed gas operation with less muzzle flash and minimized recoil.
The 3-position tunable AK-20 gas system works in the following way:
- Turn to the right “MIL-STD” for use with standard ammunition.
- Turn to the left “SUB” for subsonic ammunition when suppressed.
- Center setting has no marking and restricts gas flow.
- Subsonic ammunition suppressed – restricts gas flow and requires shooter to manually cycle rounds.
- Supersonic ammunition suppressed – restricts gas flow to soften the bolt cycling.
OPTIMAL ACCURACY
Another key feature of the AK-20 is the newly configured handguard barrel and gas tube. Unlike traditional models this design minimizes contact between the parts allowing them to work independently for greater heat resistance overall stability and highly improved accuracy.
FEATURES
- Factory SBR NFA item with U.S. manufactured milled receiver.
- Free Floating 8.5″ hammer forged chrome lined barrel with 24×1.5mm right-hand threads.
- KR-009B 4-piece flash hider.
- Includes 30 round Mil-Spec double stack M-47W magazine.
- 3-position gas system (Standard/Subsonic/Manual).
- High quality free floating Picatinny top rail that extends over the length of the receiver for added stability and streamlined optics mounting. 10.2 inches long with 25 mounting slots.
- AR-15 style telescopic stock.
- Compatibility with various stock types to accommodate individual Length-of-Pull (LOP) and cheek weld plus folding options.
- MagPul M-LOK® lower handguard.
- QD ports built into the right and left rear of the receiver.
- High-quality MIL-SPEC black Cerakote metal coating for enhanced appearance plus wear corrosion and chemical resistance.
Specifications:
- Model: SASM7K
- Type: SBR
- Caliber: 7.62x39mm
- Total Length:28.0 in. (711 mm)
- Barrel Length:8.5 in. (215 mm)
- Rifling: 4 grooves
- Twist Rate: 1:9:.44 in. (1 in 240 mm)
- Weight w/o Magazine: 7.12 lbs (3.23 kg)
- Muzzle Velocity: 1969 fps (600 m/s)
- Effective Range: 547 yds (500 m)
- Maximum Range: 1480 yds (1350 m)
- Action Type: Semi-Auto
- Magazine: 5-40+ rds
- Rate of Fire: 40rds/min prac.
